Qubic System - QS-V20

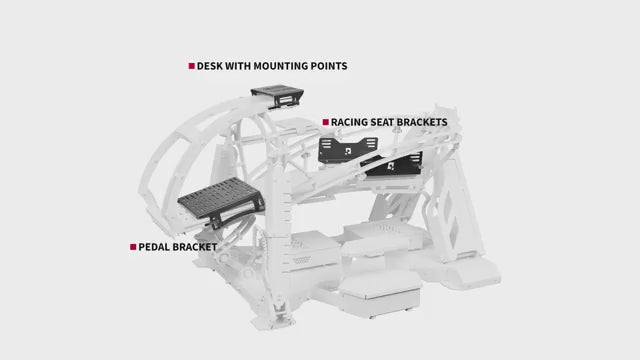

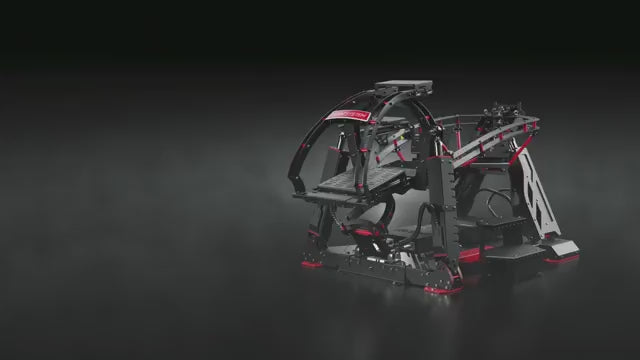

The QS-V20 is an extended 4DOF motion cockpit, designed for professional racing car simulation, intended for both driver training and sim racing enthusiasts. The motion system, based on the world's fastest linear actuator technology, provides incredible levels of vehicle feedback to the driver. This motion platform is suitable for Rally, GT, and F1 simulations. Additionally, its small footprint and lightweight design allow for easy integration of the machine into any racing room.

🔧 Technical Specifications

• Motion type: 4DOF (Heave, Pitch, Roll, Yaw)
• Motion range:
  • Heave: ±100 mm
  • Pitch: ±15°
  • Roll: ±15°
  • Yaw: ±15°
• Dimensions:
  • Total length: 1716 mm
  • Total width: 1195 mm
  • Total height: 1020 mm
• Total weight: 280 kg
• Maximum payload: 150 kg
• Maximum actuator speed: 900 mm/s
• Maximum acceleration: 0.88 G
• Vibration frequency range: 0–100 Hz
• Maximum control frequency: 1000 Hz
• Latency: < 8 ms
• Software included:
  • QubicManager (free platform manager)

• Manufacturing: Made in Poland / EU

📦 Box Contents

• QS-V20 motion platform
• Actuator mounting kit
• Necessary cables and connectors
• Detailed user manual
• QubicManager software
